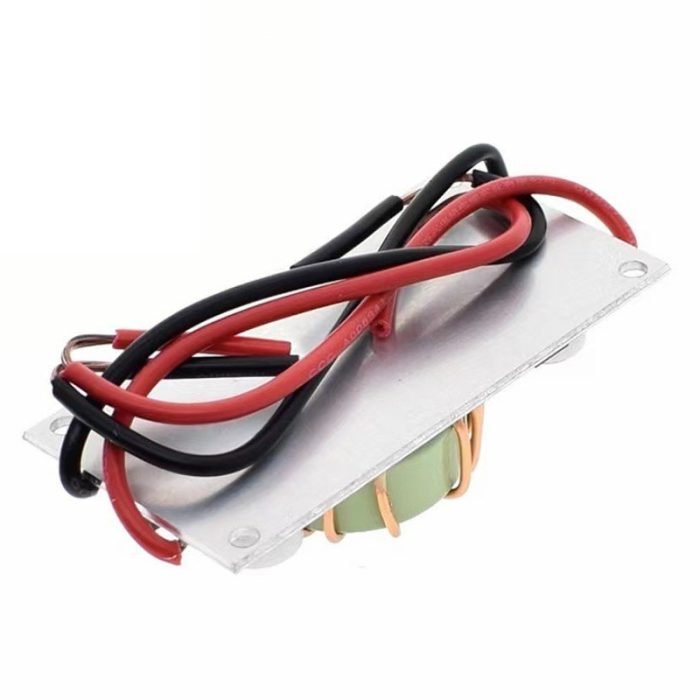

250W DC-DC 10-50V CC CV Boost Converter Module
250W DC-DC 8.5-48V to 10-50V Boost Converter Step-Up stepup Power Supply Module Constant Voltage Current Input voltage: DC8.5V-48V Input current: 10A max Standby current: 10mA Output voltage: 10-50V continuously adjustable Output current: 10A max Continuous range: 0.2-8A Temperature: -40 to 85 ℃ Operating frequency: 150KHz Conversion efficiency: up to 96% Overcurrent protection: Yes Input reverse polarity protection: Yes Installation: 4x 3mm screw holes Module size: 70x36x13mm
