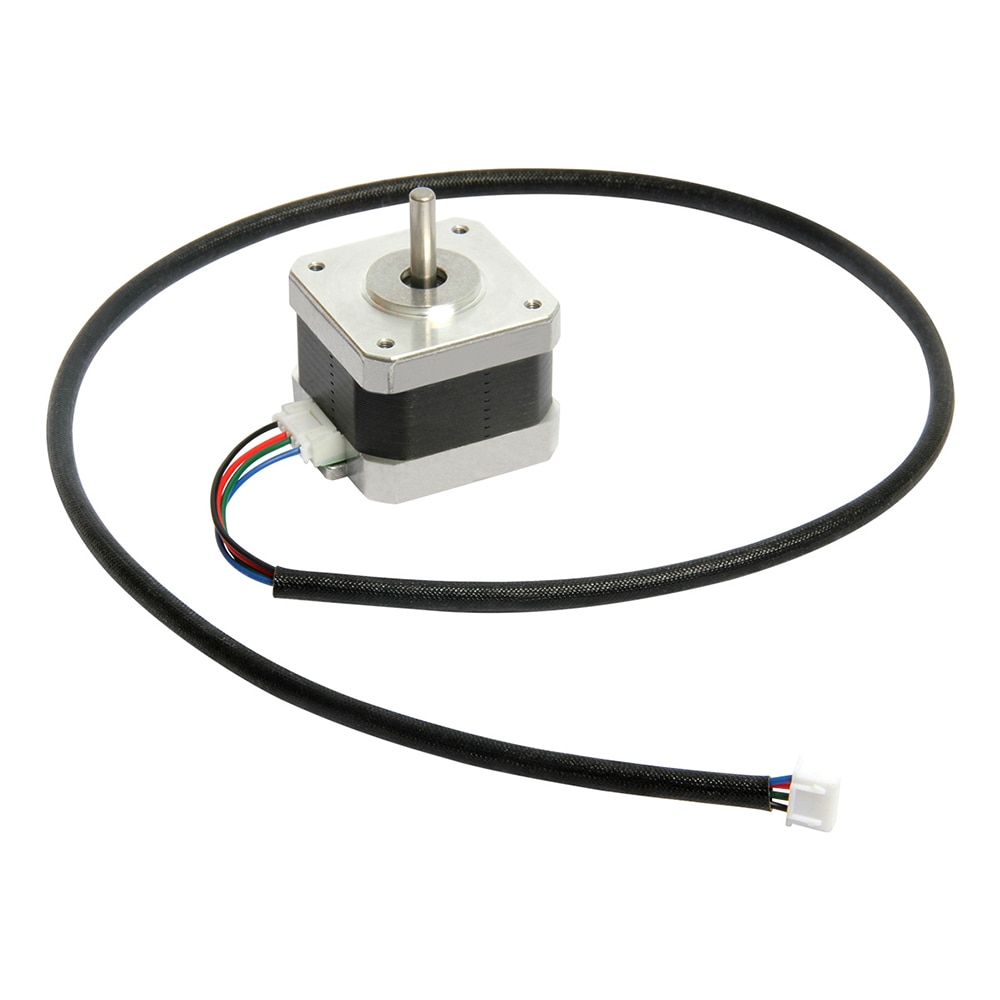

Geeetech Hybrid Stepper Motor For 3D Printer

Description Geeetech Hybrid Stepper Motor For 3D Printer Geeetech Hybrid Stepper Motor For 3D Printer is the stepper motor we use on the X/Y/Z axis for Geeetech Prusa I3 and Delta series 3D printers Specifications General specification Step angle: 1.8° Number of phase：2 Insulation resistance：100MΩmin. (500V DC) Insulation class：Class B Rotor inertia：38g cm2 Mass：0.2kg Wiring length: 700mm Connector: XH (2.54mm-4pin) Net weight: 232g Shipping weight: 310g Electrical specification Rated voltage：5V Rated voltage: 1.0A Resistance per phase: 5.0Ω±10% Inductance per phase: 6.2mH±20% Holding torque: 300mN.m Detent torque: 12mN.m
